Smooth EdgePath

Get the EdgePath first, then use smooth function for EdgePath or PolyLine.

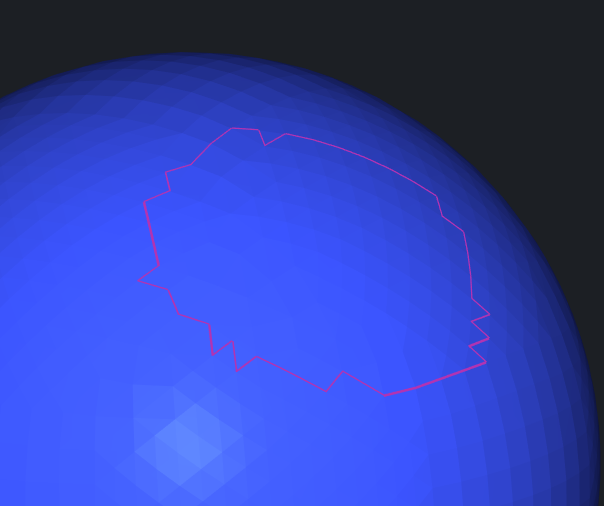

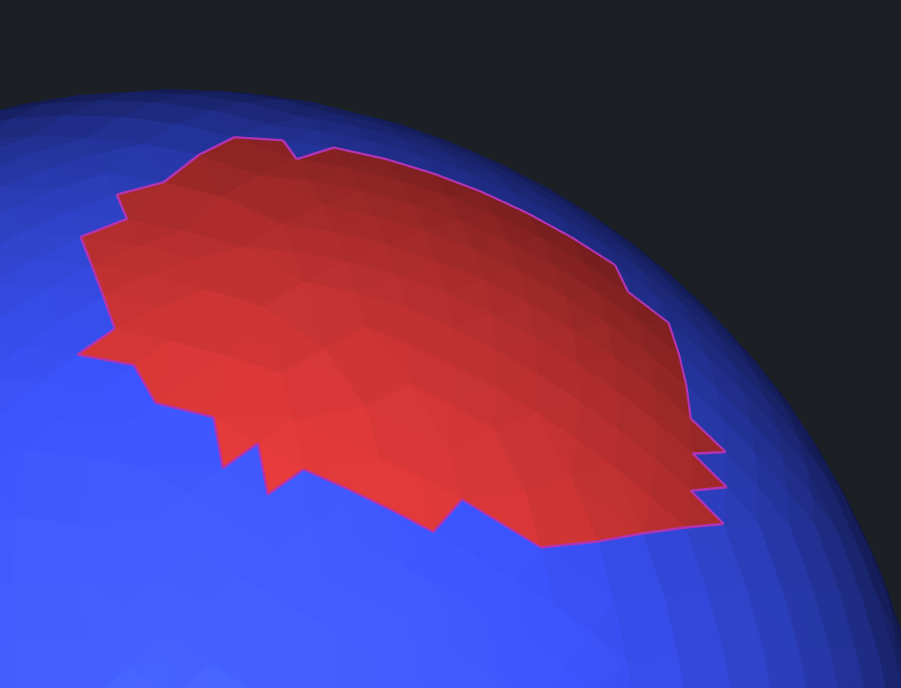

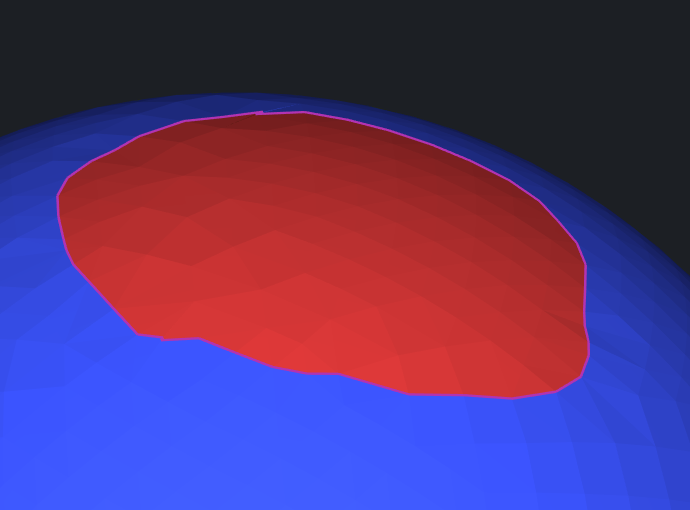

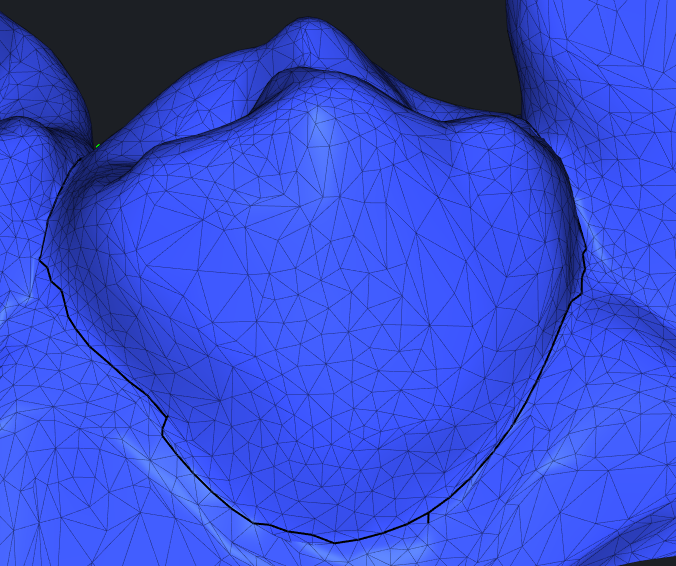

Smooth EdgePath - 0 Smooth EdgePath - 1 Smooth EdgePath - 2 Smooth EdgePath - 3

Methods

Use buildShortestPath with different metrics.

asmesh/source/MRMesh/MREdgePaths.h

Lines 86 to 106 in f9b24b4

/// builds shortest path in given metric from start to finish vertices; if no path can be found then empty path is returned
[[nodiscard]] MRMESH_API EdgePath buildSmallestMetricPath( const MeshTopology & topology, const EdgeMetric & metric,
    VertId start, VertId finish, float maxPathMetric = FLT_MAX );
/// finds the smallest metric path from start vertex to finish vertex,
/// using bidirectional modification of Dijkstra algorithm, constructing the path simultaneously from both start and finish, which is faster for long paths;
/// if no path can be found then empty path is returned
[[nodiscard]] MRMESH_API EdgePath buildSmallestMetricPathBiDir( const MeshTopology & topology, const EdgeMetric & metric,
    VertId start, VertId finish, float maxPathMetric = FLT_MAX );
/// finds the smallest metric path from one of start vertices to one of the finish vertices,
/// using bidirectional modification of Dijkstra algorithm, constructing the path simultaneously from both starts and finishes, which is faster for long paths;
/// if no path can be found then empty path is returned
[[nodiscard]] MRMESH_API EdgePath buildSmallestMetricPathBiDir( const MeshTopology & topology, const EdgeMetric & metric,
    const TerminalVertex * starts, int numStarts,
    const TerminalVertex * finishes, int numFinishes,
    VertId * outPathStart = nullptr,  // if the path is found then its start vertex will be written here (even if start vertex is the same as finish vertex and the path is empty)
    VertId * outPathFinish = nullptr, // if the path is found then its finish vertex will be written here (even if start vertex is the same as finish vertex and the path is empty)
    float maxPathMetric = FLT_MAX );

/// builds shortest path in given metric from start to finish vertices; if no path can be found then empty path is returned
[[nodiscard]] MRMESH_API EdgePath buildSmallestMetricPath( const MeshTopology& topology, const EdgeMetric& metric,
    VertId start, const VertBitSet& finish, float maxPathMetric = FLT_MAX );

You can find some basic metrics here.
