Implement Distance Compare option in c++

Implement Distance Compare function.

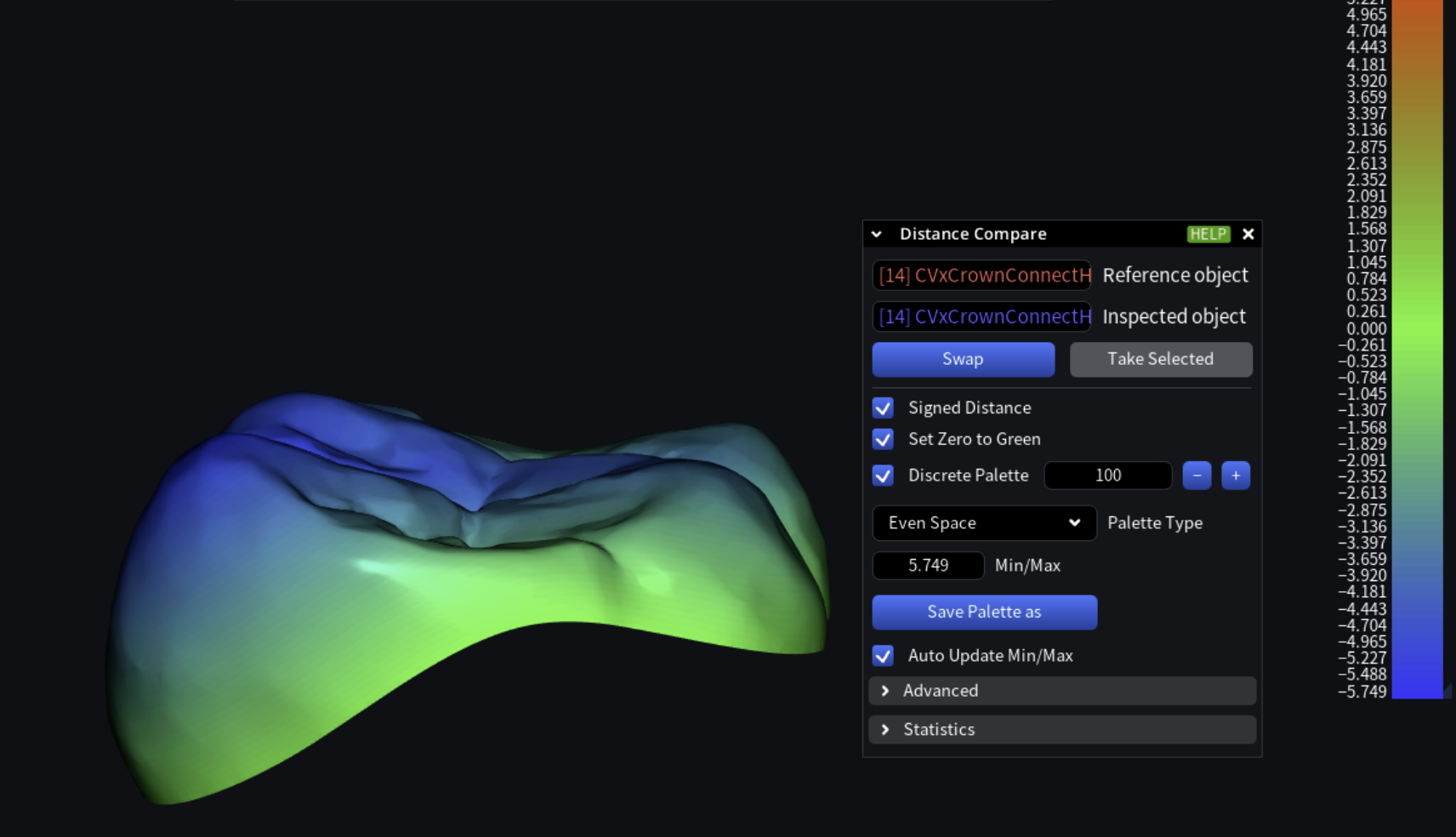

Distance Compare

Use this function:

asmesh/source/MRMesh/MRPointsToMeshProjector.h

Lines 53 to 60 in d64341c

/// Computes signed distances from valid vertices of test mesh to the closest point on the reference mesh:
/// positive value - outside reference mesh, negative - inside reference mesh;
/// this method can return wrong sign if the closest point is located on self-intersecting part of the mesh
[[nodiscard]] MRMESH_API VertScalars findSignedDistances(
    const Mesh& refMesh, ///< the distances to this mesh will be returned
    const Mesh& mesh,    ///< the distances from valid vertices of this mesh will be returned
    const MeshProjectionParameters & params = {},
    IPointsToMeshProjector * projector = {} ); ///< if projector is not given then CPU's computations will be used

with CPU or GPU projector:
