Fill and Inflate a hole in the mesh

Not to call subdivizion explicitly, but use FillHoleNicely for it, it performs subdivideMesh inside, it can be controlled with:

/// Subdivision is stopped when all edges inside or on the boundary of the region are not longer than this value
float maxEdgeLen = 0;

/// Maximum number of edge splits allowed during subdivision
int maxEdgeSplits = 1000;

then you can use getIncidentVerts or getInnerVerts function to find vertices for inflate.

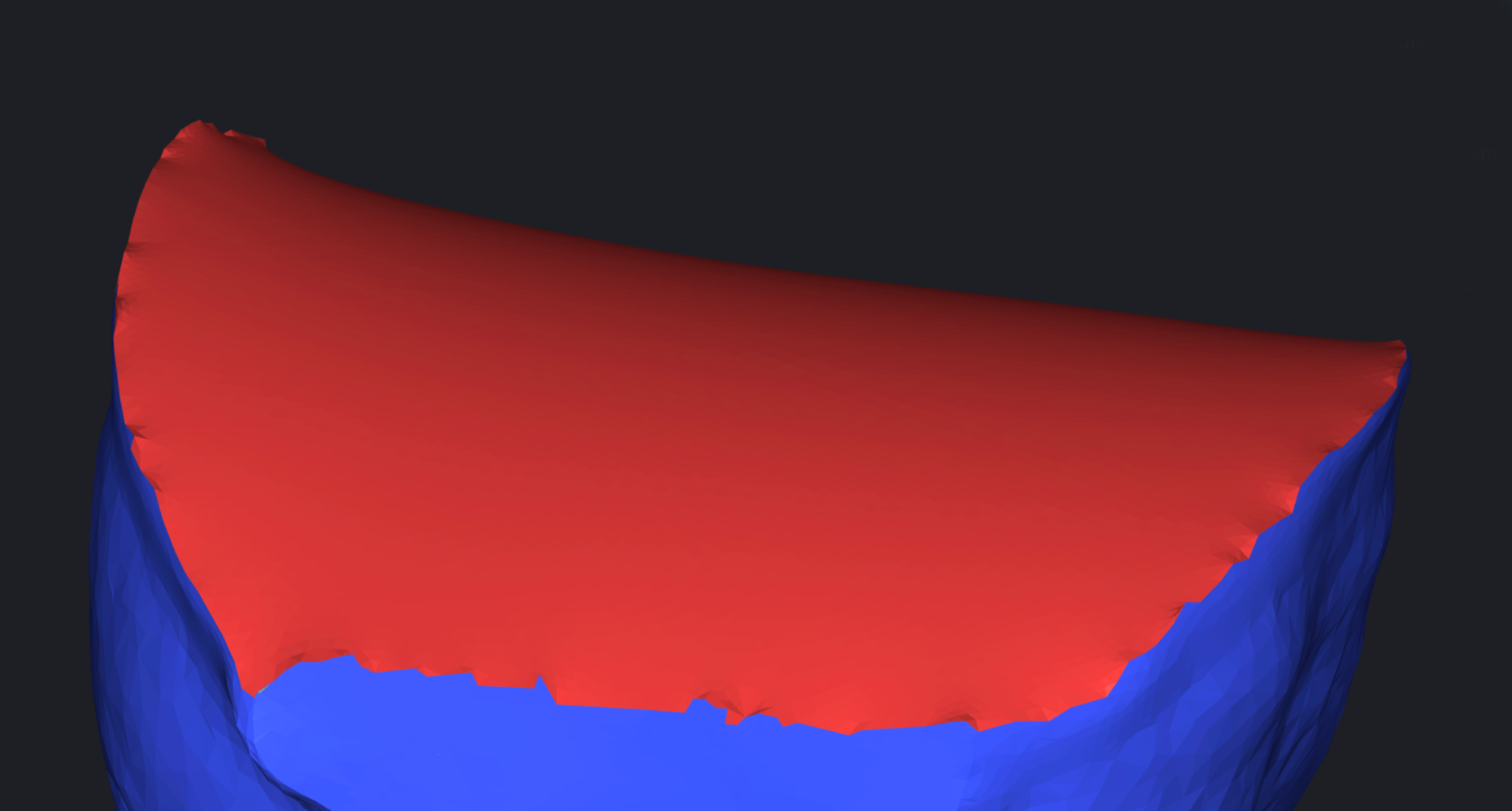

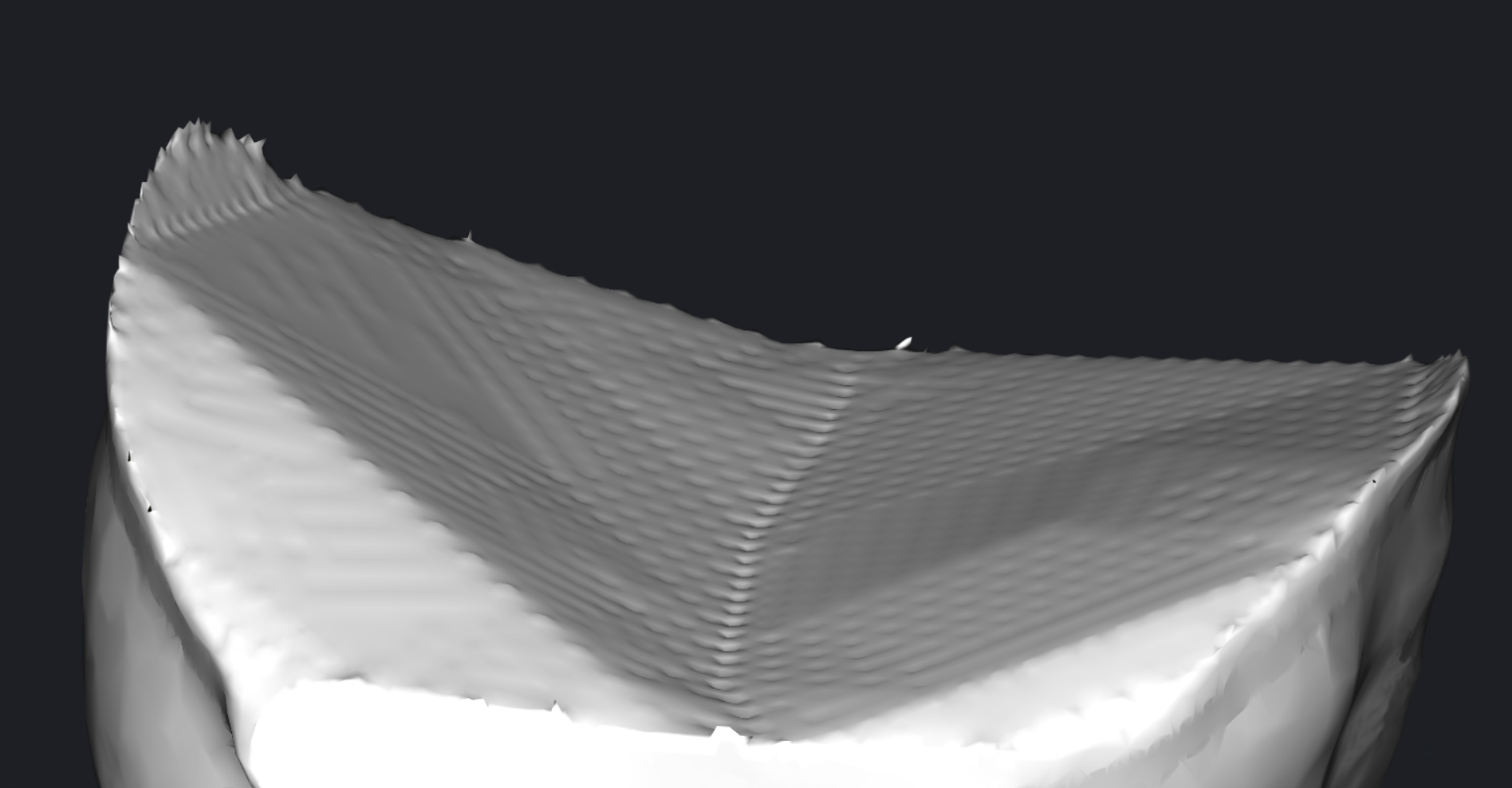

fill_inflate_hole_default fill_inflate_hole_desired

from meshlib import mrmeshpy as mm

mesh = mm.loadMesh("input mesh.stl")

params = mm.FillHoleNicelySettings()
params.maxEdgeSplits = 1000000 # just a big number not to stop subdivision by this criteria
params.maxEdgeLen = mesh.averageEdgeLength() # stop subdivision by this criteria

holeEdges = mesh.topology.findHoleRepresentiveEdges()
maxAreaHole = mm.EdgeId()
maxHoleAreaSq = 0

# find max area hole
for e in holeEdges:
areaSq = mesh.holeDirArea(e).lengthSq()
if (areaSq > maxHoleAreaSq):
maxHoleAreaSq = areaSq
maxAreaHole = e

# fill holes
for e in holeEdges:
params.smoothCurvature = bool(e != maxAreaHole) # smooth curvature does not make sense if inflation is applied afterwards
newFaces = mm.fillHoleNicely(mesh,e,params)
if (e==maxAreaHole):
newVerts = mm.getInnerVerts(mesh.topology,newFaces)
infParams = mm.InflateSettings()
infParams.pressure = 5
mm.inflate(mesh,newVerts,infParams)

mm.saveMesh(mesh,"output mesh.stl")
